Light Commercial Aquaculture Heating Package

Description

The Delta Hydronics Light Commercial Aquaculture Heating Package is a compact, energy efficient, and cost effective way to provide centralized heating to multiple points in an aquaculture system. This package can be used to heat any body of water such as raceways, nursery tanks, broodstock, etc. The LCAP utilizes a 95% efficient Condensing Boiler, Insulated & Jacketed Buffer Tank, and Titanium/ Stainless Steel Immersion Grid Coil Heat Exchangers to maintain each location at its desired temperature setpoint. Every point will have its own dedicated circulation pump and Electronic Temperature Controller, which would activate the pump to circulate heated water through the Heat Exchanger when the aquatic water temperature dropped below a desired setpoint. Pumps can be preplumbed and mounted as shown, or installed in the field.

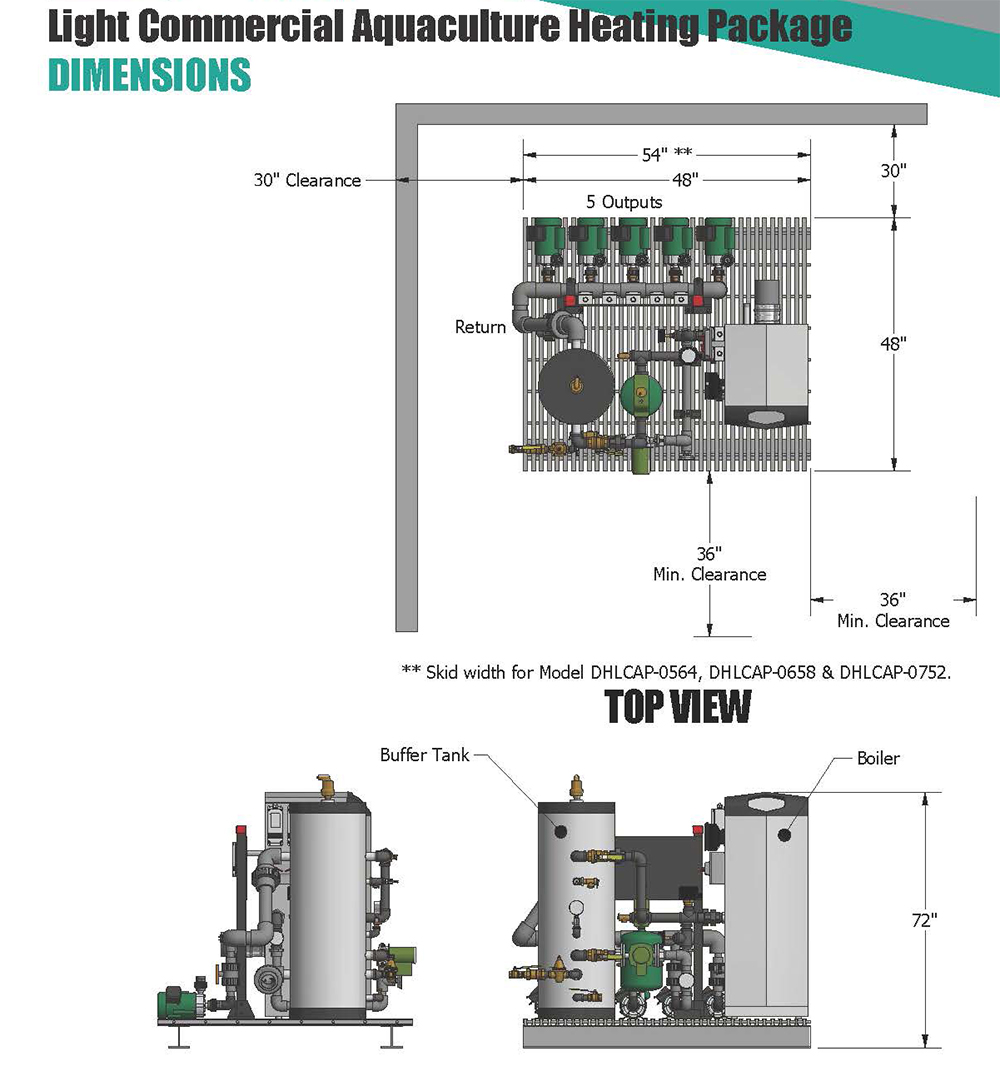

Dimensions Diagram Download Brochure

Light Aquaculture Heating Package Models

LIGHT AQUACULTURE HEATING PACKAGE
PART # BTU OUTPUT SKID DIMENSIONS BUFFER TANK SIZE BTU OUPUT PER HEX* GRID COIL HTA & DIMENSIONS*
DHLCAP-0199 199 500 48" x 48" x 72" 30 GALLON 39 900 BTU's 6.5 SQ.FT. [36" x 12"]
DHLCAP-0270 270 750 48" x 48" x 72" 30 GALLON 54 150 BTU's 8.6 SQ.FT. [48" x 12"]
DHLCAP-0376 376 000 48" x 48" x 72" 30 GALLON 75 200 BTU's 12.0 SQ.FT. [72" x 12"]
DHLCAP-0470 470 000 48" x 48" x 72" 30 GALLON 94 000 BTU's 15.0 SQ.FT. [60" x 18"]
DHLCAP-0564 564 000 54" x 48" x 72" 50 GALLON 112 800 BTU's 18.0 SQ.FT. [48" x 24"]
DHLCAP-0658 658 000 57" x 48" x 72" 50 GALLON 131 600 BTU's 21.0 SQ.FT. [60" x 24"]
DHLCAP-0752 752 000 54" x 48" x 72" 50 GALLON 150 400 BTU's 24.0 SQ.FT. [72" x 24"]
* Assuming 5 Setpoints

Larger sizes available upon request
# of setpoints and grid coil size will vary based on application
