Aquatics Boiler Package
Description

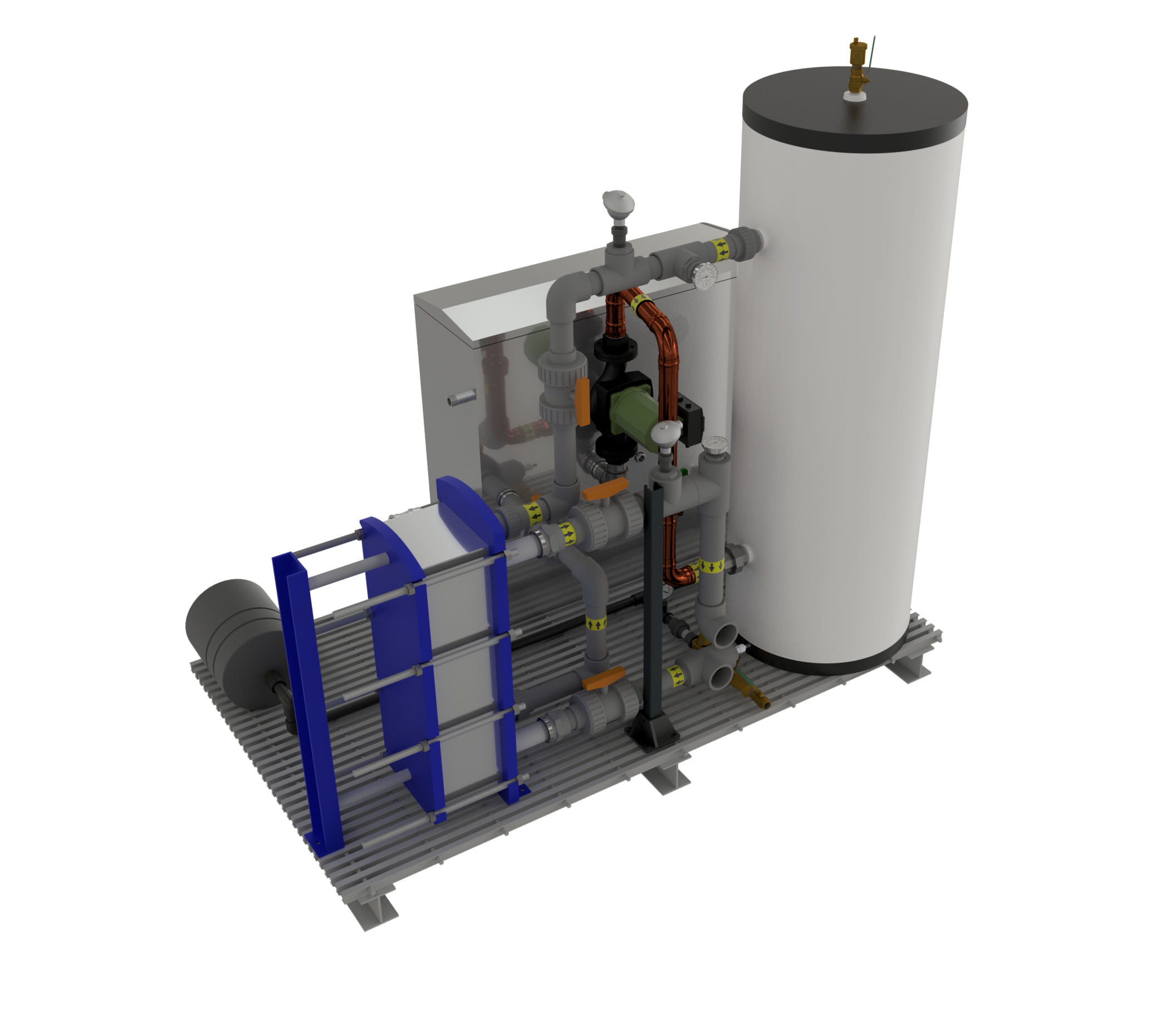

The Delta Hydronics Aquarium Boiler Package is a compact, energy efficient, and cost effective way to provide temperature control to a single point application in Zoos, aquariums, pools, etc. The package utilizes a 95% efficient Condensing Boiler, Insulated & Jacketed Buffer Tank, and Compact Plate Heat Exchanger (Titanium or Stainless Steel) in a closed loop hydronic system to effectively bring your application to a desired temperature setpoint. All equipment comes pre-plumbed, mounted on FRP grating secured with 316 SS hardware.
Download Brochure
Aquatics Boiler Package Models
| AQUATICS BOILER PACKAGE | |||||||
|---|---|---|---|---|---|---|---|
| PART # | BTU OUTPUT | AQUATIC SYSTEM FLOW AT 5PSI ∆P | DIMENSIONS | BUFFER TANK SIZE | STD CONNECTION SIZE | ||
| DH-ABP-110 | 110 000 | 15-25 GPM | 60" x 36" x 52" | 30 GALLON | 1.5" | ||
| DH-ABP-155 | 155 000 | 15-25 GPM | 60" x 36" x 52" | 30 GALLON | 1.5" | ||
| DH-ABP-200 | 200 000 | 20-30 GPM | 60" x 36" x 52" | 30 GALLON | 1.5" | ||
| DH-ABP-285 | 285 000 | 20-30 GPM | 60" x 36" x 52" | 30 GALLON | 1.5" | ||
| DH-ABP-400 | 400 000 | 55-70 GPM | 84" x 48" x 82" | 50 GALLON | 2" | ||
| DH-ABP-500 | 500 000 | 65-80 GPM | 84" x 48" x 82" | 50 GALLON | 2" | ||
| DH-ABP-600 | 600 000 | 80-95 GPM | 84" x 48" x 82" | 80 GALLON | 2.5" | ||
| DH-ABP-700 | 700 000 | 95-110 GPM | 84" x 48" x 82" | 80 GALLON | 2.5" | ||
| DH-ABP-800 | 800 000 | 105-120 GPM | 84" x 48" x 82" | 80 GALLON | 2.5" | ||
